In a scene right out of Call of Duty, your special forces unit is surrounded on a plateau deep in enemy territory and your ammo is running low. The area is hot with small arms fire, and even if a helicopter crew were to risk it, there are none available. Not to worry, a CQ-10 Snowgoose stuffed full of supplies is on the way.

The CQ-10A is Special Operations Command’s derivative of Mist Mobility Integrated Systems Technology ’s (MMIST) Snowgoose unmanned aircraft system that first flew in 2001. The ingenious Snowgoose design uses a parafoil and pusher propeller driven by a 110hp Rotax engine, in a very similar configuration as recreational paramotors (powered paragliders).

The aircraft is guided by GPS and is fully autonomous after launch, with a pre-programmed route uploaded onto the system using a desktop-like user interface. The flight can be monitored and even updated in real-time via a SATCOM interface that feeds real time information to the controller on the ground.

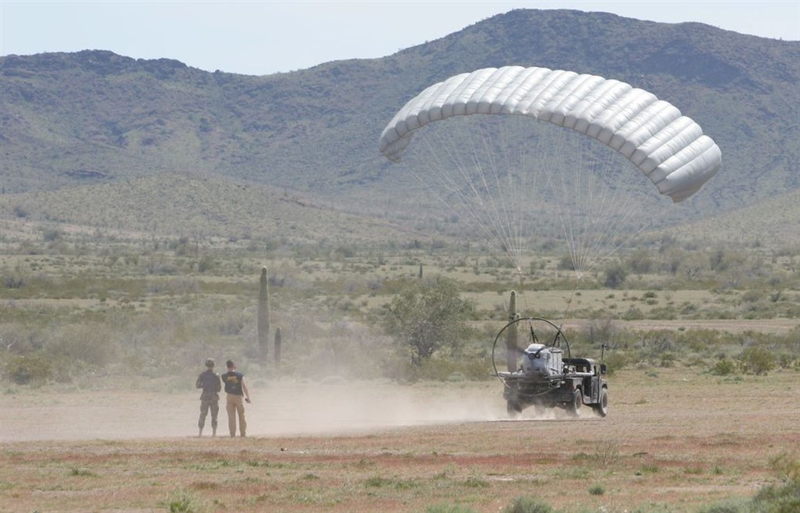

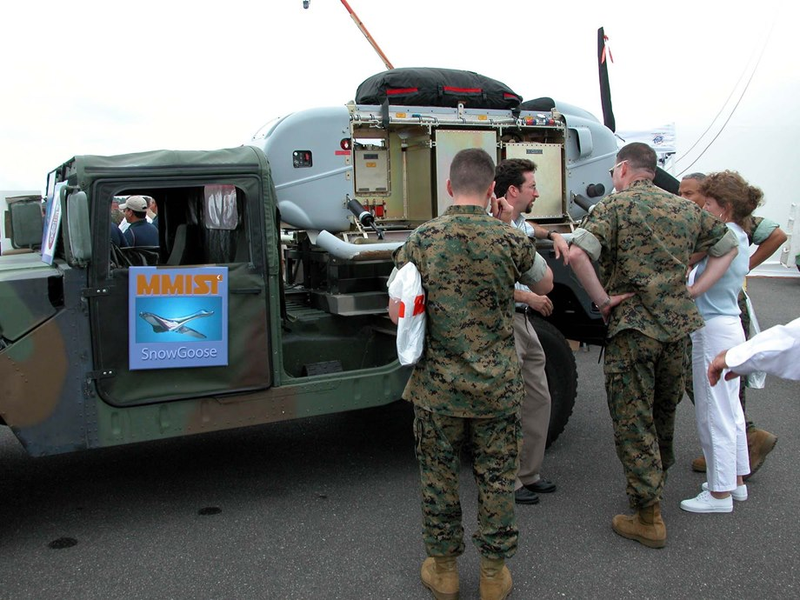

The CQ-10A is launched off the back of a vehicle, usually a Humvee, and it only takes about a thousand feet to get it airborne. Even grass or a dirt roads are good enough to launch the CQ-10A, making harsh operating locations well within its capability. The CQ-10A can also be dropped out of a cargo aircraft such as a C-17 or C-130.

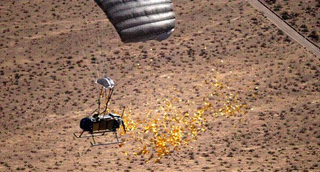

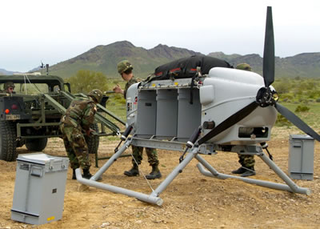

The remarkably simple Snowgoose can carry up to 600lbs of supplies in its configurable cargo bay. This can include ammunition, medical supplies, blood, meals ready to eat, fuel, clean water, spare parts, batteries and mission-specific systems. According to its manufacturer, one CQ-10 can sustain a 12-man infantry team in the field indefinitely. It does not have to land to deliver these supplies, as it can drop them in six individual segments from high or low altitude, with a circular error of probability of less than 100 meters.


Snowgoose can travel close to 200 miles with a light load, although this number drops as the payload increases, and it speeds along at around 40 mph.

Resupply is clearly one of the CQ-10’s most relevant missions, but really, it is a relatively cheap, highly deployable and easily adaptable platform for so many other missions. It was originally designed with psychological operations in mind, as a leaflet dispenser, but it can also be a communications relay, sensor platform, radio broadcast station, or even a weapons platform. The fact that it can loiter over an area for 15 hours continuously, while still carrying a 100-lb payload, puts it into the medium persistence unmanned aircraft category.


Because of their simplicity, these systems can be used for sustained logistics, making multiple trips to and from operating bases over a long period and delivering thousands of pounds of cargo over a relatively short span of time. Considering that these craft run on a parafoil and a Rotax engine with about the same horsepower as the Cessna 152, the operational costs are a tiny fraction of their rotary-wing manned counterparts.

SOCOM is said to have about 75 of these humble little sky sherpas (at least, that was the original order). Seeing that the system went operational in 2005, it is unclear how many have been lost and whether or not they were replaced. At one time, around 2009, SOCOM was rumored to have been looking to move Snowgoose operations outside of its command, but it is unclear if this ever actually happened. This was not because of the system’s effectiveness; it was because it needed special operations forces to deploy and maintain it in order for special operations forces to benefit from it.

Regardless of where the CQ-10A’s numbers stand with SOCOM today, MMIST has come out with a new model that does not use an parafoil at all. Instead, the system uses a gyrocopter configuration and is so logical and cost effective that it could, if given the chance, revolutionize small-scale logistics over the battlefield.

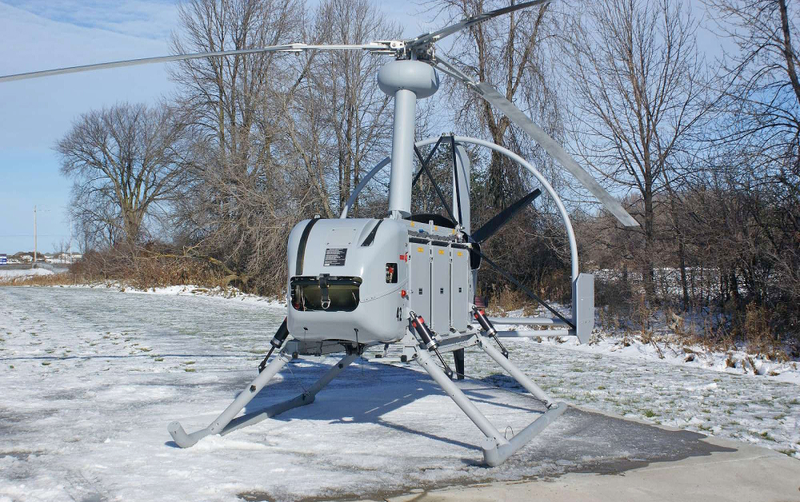

Known as the CQ-10B, this system does not require launch from a speeding vehicle, as it simply powers forward using it propeller’s thrust until its rotor head generates enough lift to pull the drone off the ground. Because this system requires minimum infrastructure and can launch and land nearly vertically, it offers an even more reliable logistical bridge for austere operating locations. Being able to land anywhere and return on command with no additional help gives the CQ-10B a capability the CQ-10A did not have. It also offers nearly double the speed and range as its predecessor, plus other advantages, like superior headwind penetration.


When you think creatively about what can be done with CQ-10B, it clearly offers some pretty awesome potential that don’t exist with any other unmanned platform today. It can be air-dropped with a special forces unit and then deployed by that unit to provide overwatch and communications relay support (or potentially very light air support) for their mission. When the mission concludes, the aircraft can simply fly to a recovery location.

When using guided ‘smart’ cargo parachute systems, of which MMIST makes multiple types, a CQ-10B can be dropped with them and their supplies. Once the unit on the ground has recovered the supplies from the guided parachutes, they can be packed aboard a CQ-10B that will autonomously fly them to friendly territory for reuse.

SOCOM is not alone in their interest when it comes the Snowgoose. The Office of Naval Research has taken a great interest in the gyrocopter-like CQ-10B, with the unit seen as an ideal, low-cost, multi-role sea-to-shore logistics platform . Whether it will be procured in large numbers remains unknown, but it was a featured exhibit at the biannual Naval Future Force Science and Technology Expo just this year. Here is a video of from 2008 of the CQ-10A shipboard resupply concept (since then the Navy has turned to the CQ-10B model) :

Clearly, the Navy’s Special Warfare Command could also make good use of the Snowgoose system, as sending a helicopter from a ship for emergency resupply to units deep in enemy territory may be impossible. Risking a CQ-10, with its tiny radar signature, may be much more palatable.


Where the Snowgoose might shine the most is not in the hands of the military at all, but for civilian and commercial applications. For difficult locations all over the world, especially in regards to places like Alaska, where very small groups of people live hundreds of miles away from population centers, the Snowgoose could be the perfect low-cost resupply vehicle.

Today, light aircraft are mainly used for these sorts of resupply missions, but they are hampered by visibility and cost. The Snowgoose, with its autonomous GPS navigation, simplified design, and lack of a pilot, could provide more effective service at a minimal cost. Additionally, with the CQ-10B gyrocopter capability, minimal training would be required to launch the aircraft on its way back home. Theoretically, just aligning the machine with an open area and hitting a button could do the trick.

Overseas, in places like Africa, light aircraft have to risk very rough terrain with minimal chances of being found by search and rescue teams should something go wrong. Even worse, they might fly over conflict zones in order to provide humanitarian aid to indigenous peoples. The Snowgoose could be a perfect alternative. The same goes for resupply science and energy exploration expeditions in remote areas.


There are so many other missions the aircraft could perform here at home, including border patrol, disaster relief, overhead surveillance, search and rescue. The list just keeps on going. Even oil platforms could use the system as a much lower cost way of performing light logistics than expensive twin engine helicopters.


Currently, FAA rules are an issue when it comes to adapting an aircraft like the CQ-10 to civilian applications. However, this will, and should, change in the not-so-distant future. Until then, MMIST will have to rely on military purchases to keep the Snowgoose alive and thriving.

Snowgoose is such a relevant and simple solution to so many problems that it is somewhat bewildering that it has not already been fielded in larger numbers, especially the CQ-10B model. Then again, it is by no means a glamorous machine. It is a slow, tubby, utilitarian, multi-role tool.

Hopefully its extreme cost effectiveness ($650k per machine and hundreds of dollars per hour to operate) will overpower its weak sex appeal in the minds of investors. This drone has the power to change aviation forever.
